Motion control

SimpleFOClibrary has two main parameters that define the motion control architecture to be used (and each of them can be modified in real-time):

• Motion control mode - motor.controller
  • Closed-Loop control - with position sensor
  • Open-Loop control - no position sensor
• Torque control mode - motor.torque_controller
  • Used only in the closed-loop control modes

Units in the library

All the motor/driver/sensor parameters and control variables are defined in the following units:

Torque control modes

There are three torque control types implemented in the SimpleFOClibrary:

• Voltage - TorqueControlType::voltage
• DC current - TorqueControlType::dc_current
• FOC current - TorqueControlType::foc_current

⚠️ This parameter is not used if the Open-Loop control is chosen.

And they can be set by changing the motor attribute torque_controller.

// set torque mode to be used
// TorqueControlType::voltage    ( default )
// TorqueControlType::dc_current
// TorqueControlType::foc_current
motor.torque_controller = TorqueControlType::foc_current;

For more in depth explanations about different torque modes visit the torque mode docs

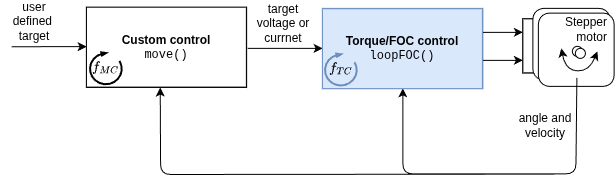

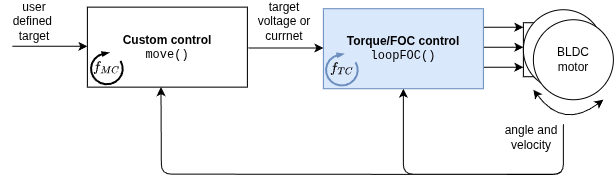

Motion control modes

SimpleFOClibrary implements motion control for both cases:

• Closed-Loop control - with position sensor
• Open-Loop control - no position sensor

Closed-Loop control

There are three Closed-Loop control types implemented in the SimpleFOClibrary:

• Torque - MotionControlType::torque
• Velocity - MotionControlType::velocity
• Angle - MotionControlType::angle

And they can be set by changing motor’s controller parameter.

// set motion control loop to be used
// MotionControlType::torque
// MotionControlType::velocity
// MotionControlType::angle
motor.controller = MotionControlType::angle;

For more in depth explanations about different Closed-Loop control loops visit the closed-loop control docs

Open-Loop control

Additionally you can run the motor in the open-loop, without position sensor feedback, as well:

• velocity open-loop control - MotionControlType::velocity_openloop
• position open-loop control - MotionControlType::angle_openloop

Index search uses also uses open-loop position control, but has some additional parameters, see index search

And they too can be enabled by setting motor’s controller parameter.

// MotionControlType::velocity_openloop    - velocity open-loop control
// MotionControlType::angle_openloop       - position open-loop control
motor.controller = MotionControlType::angle_openloop;

For more in depth explanations about different Closed-Loop control loops visit the open-loop control docs

For more information about the source code implementation of the motion control strategies check the library source code documentation
